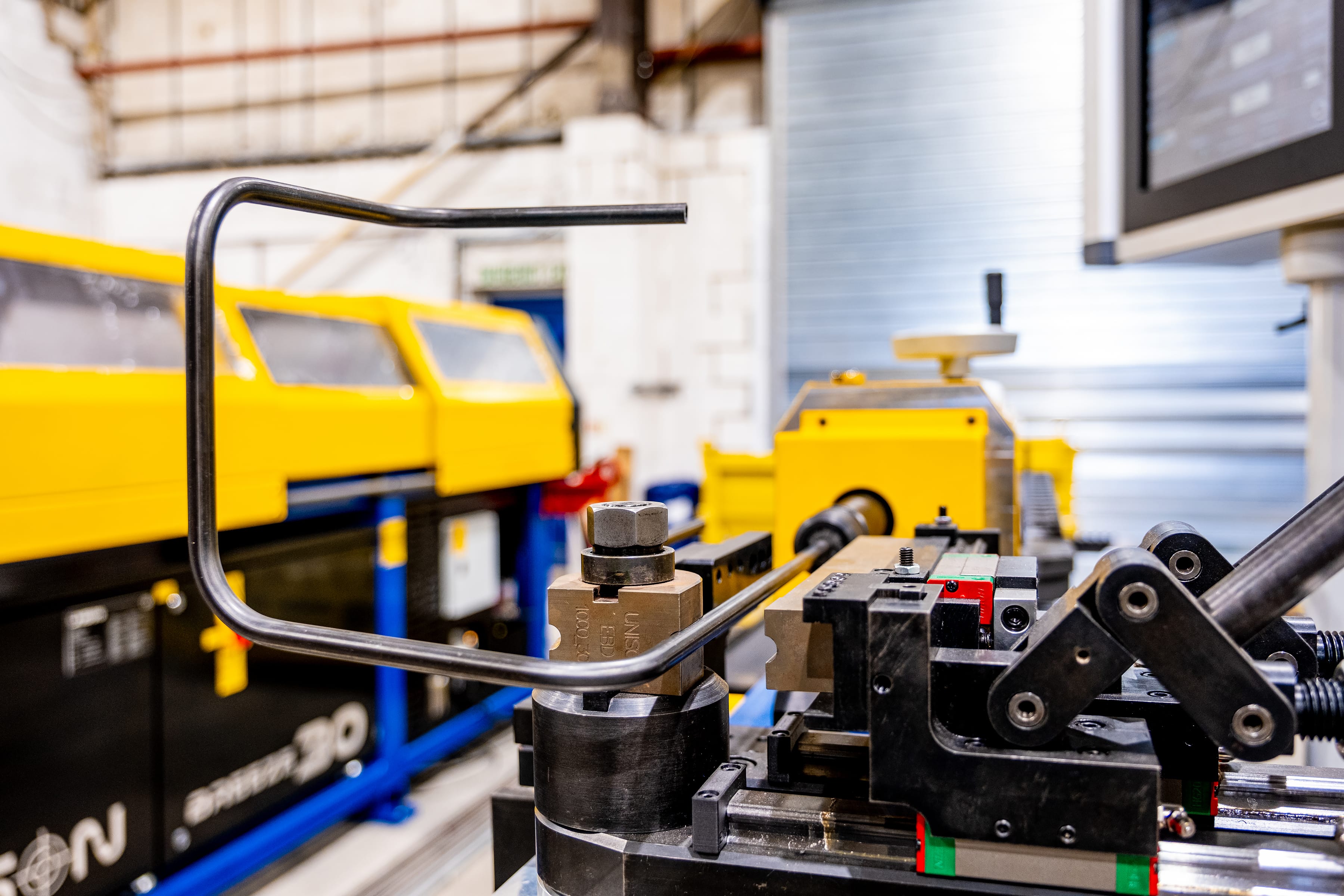

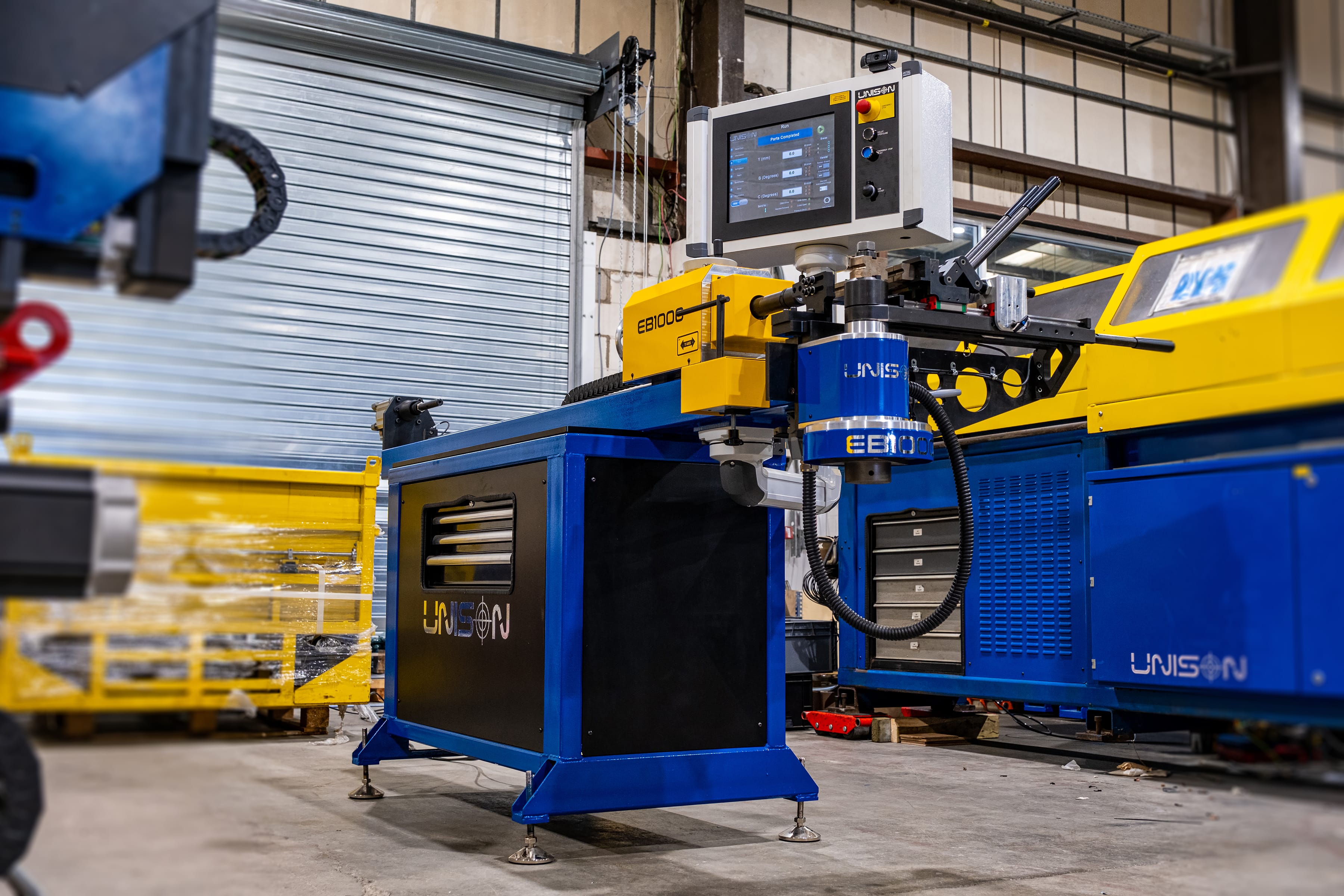

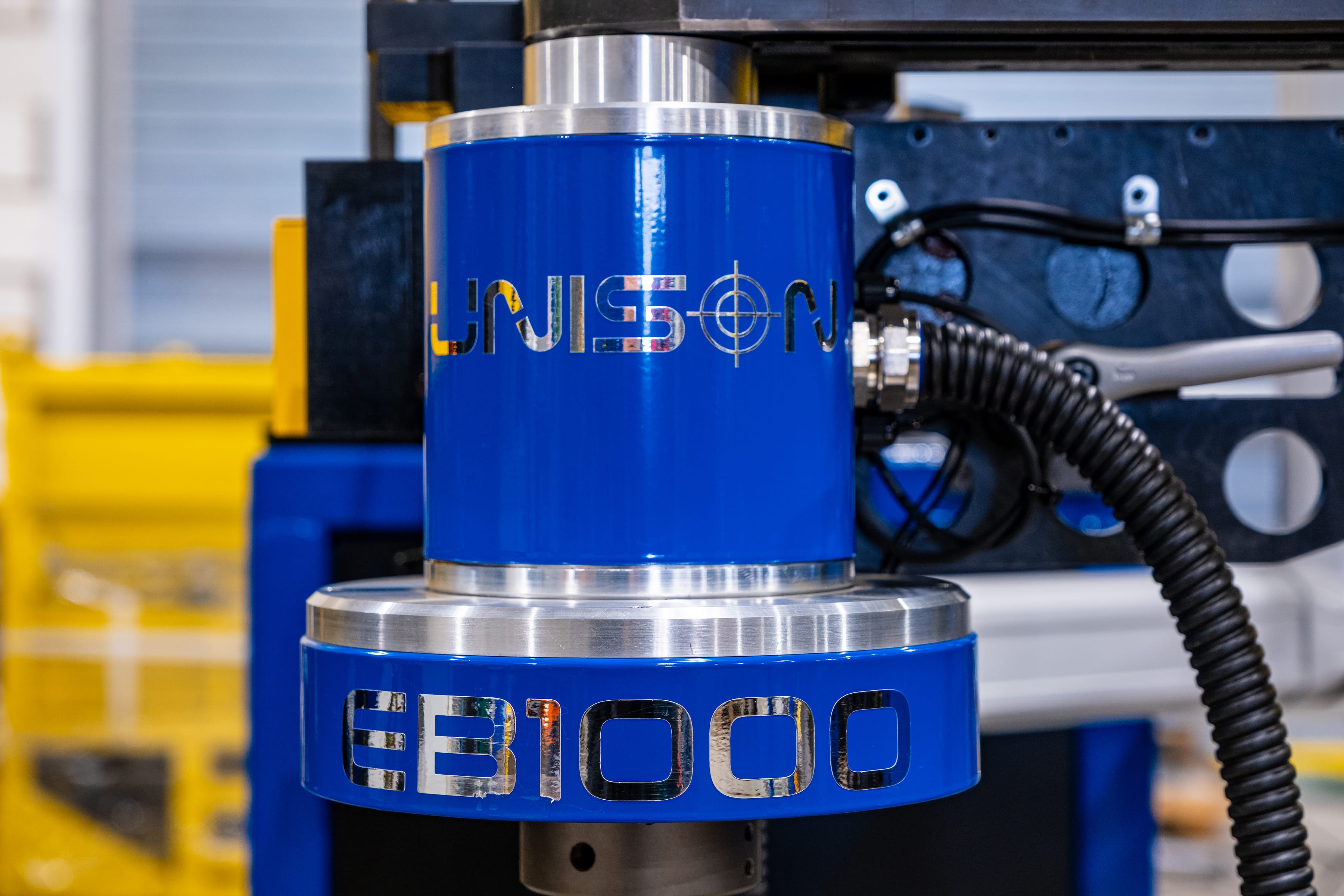

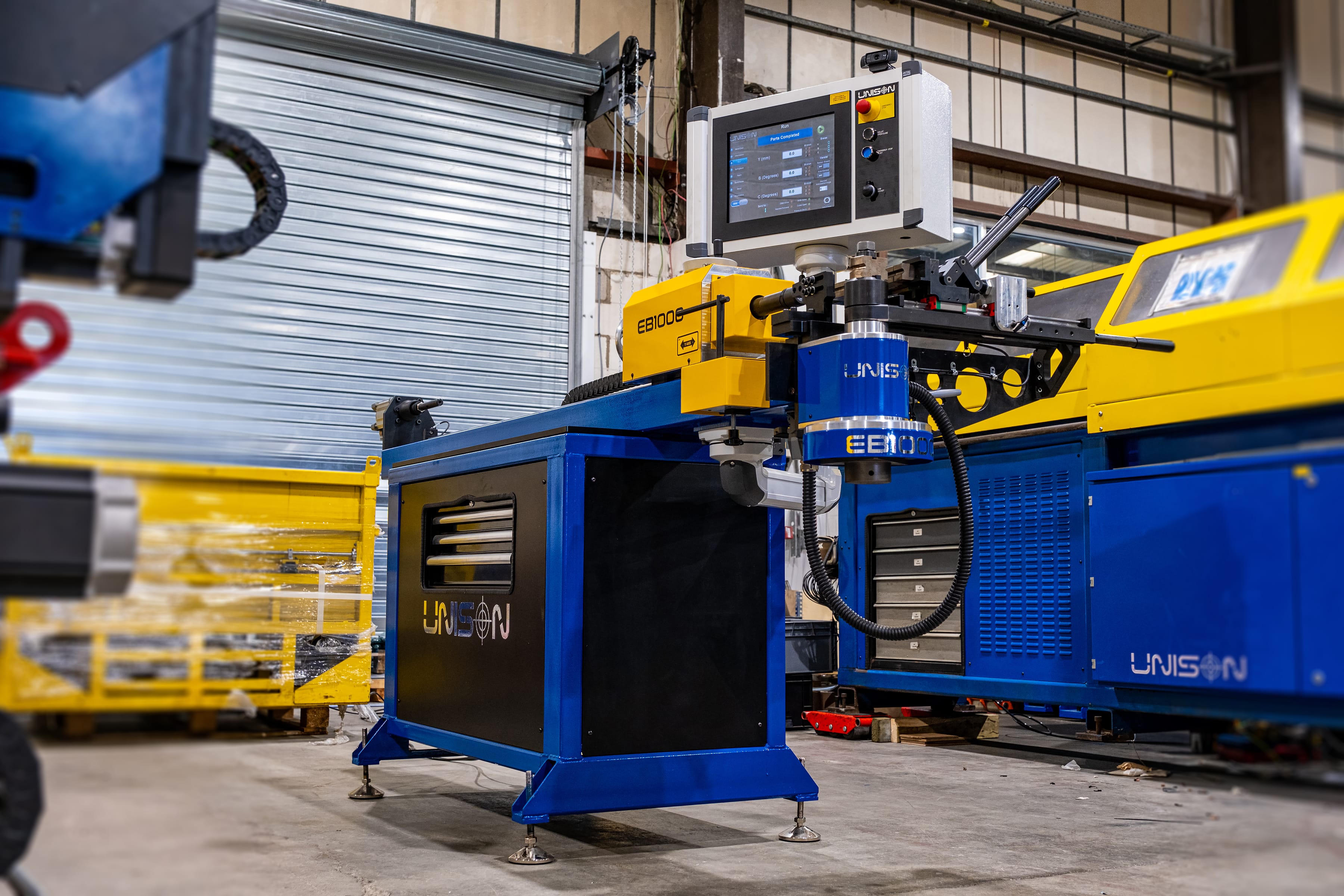

Designed for low volume, high-accuracy production and prototyping, Unison EvBend tube benders are used across the aerospace, MRO, Formula 1, and oil & gas industries for precision bending tube of up to 50 mm in diameter.

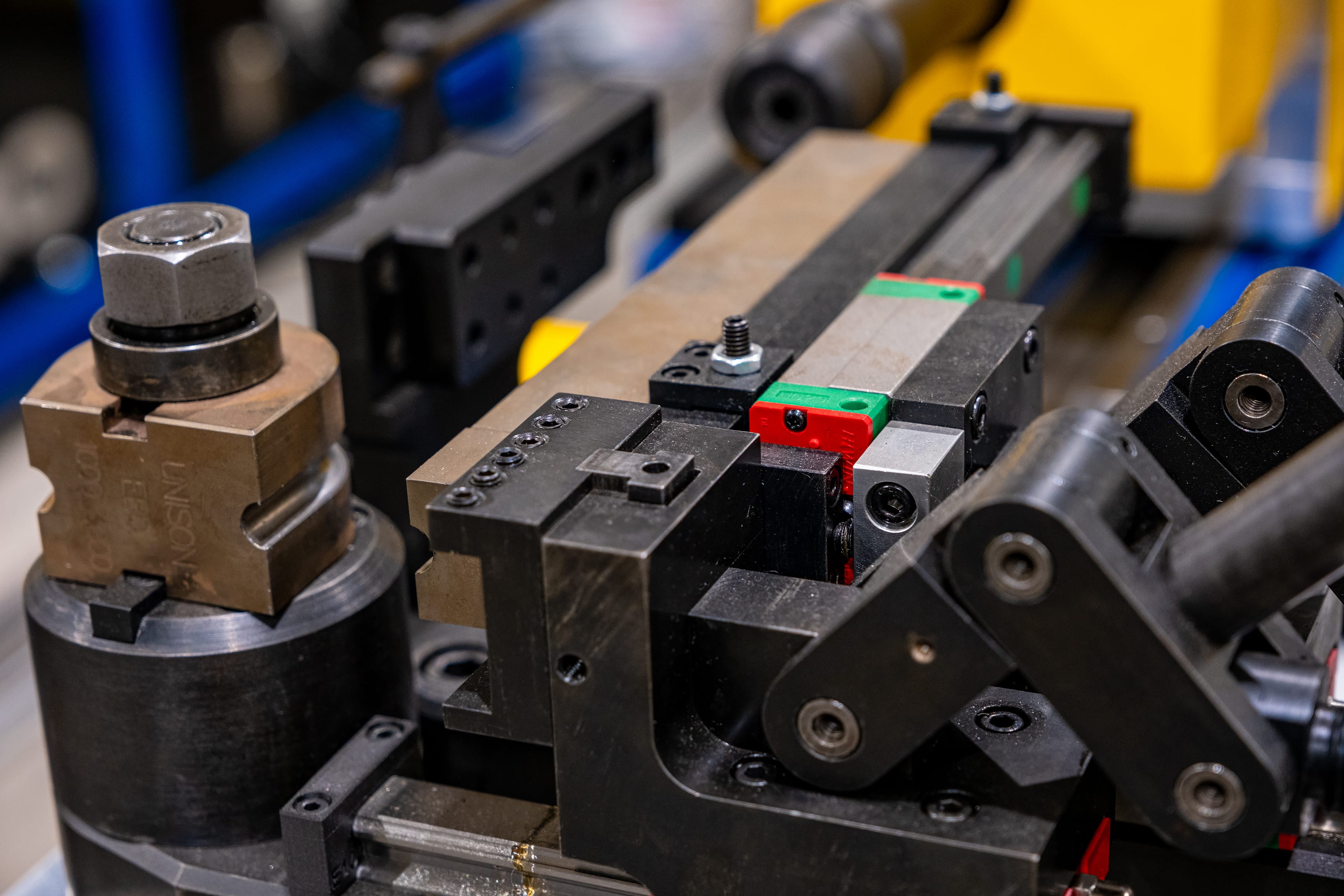

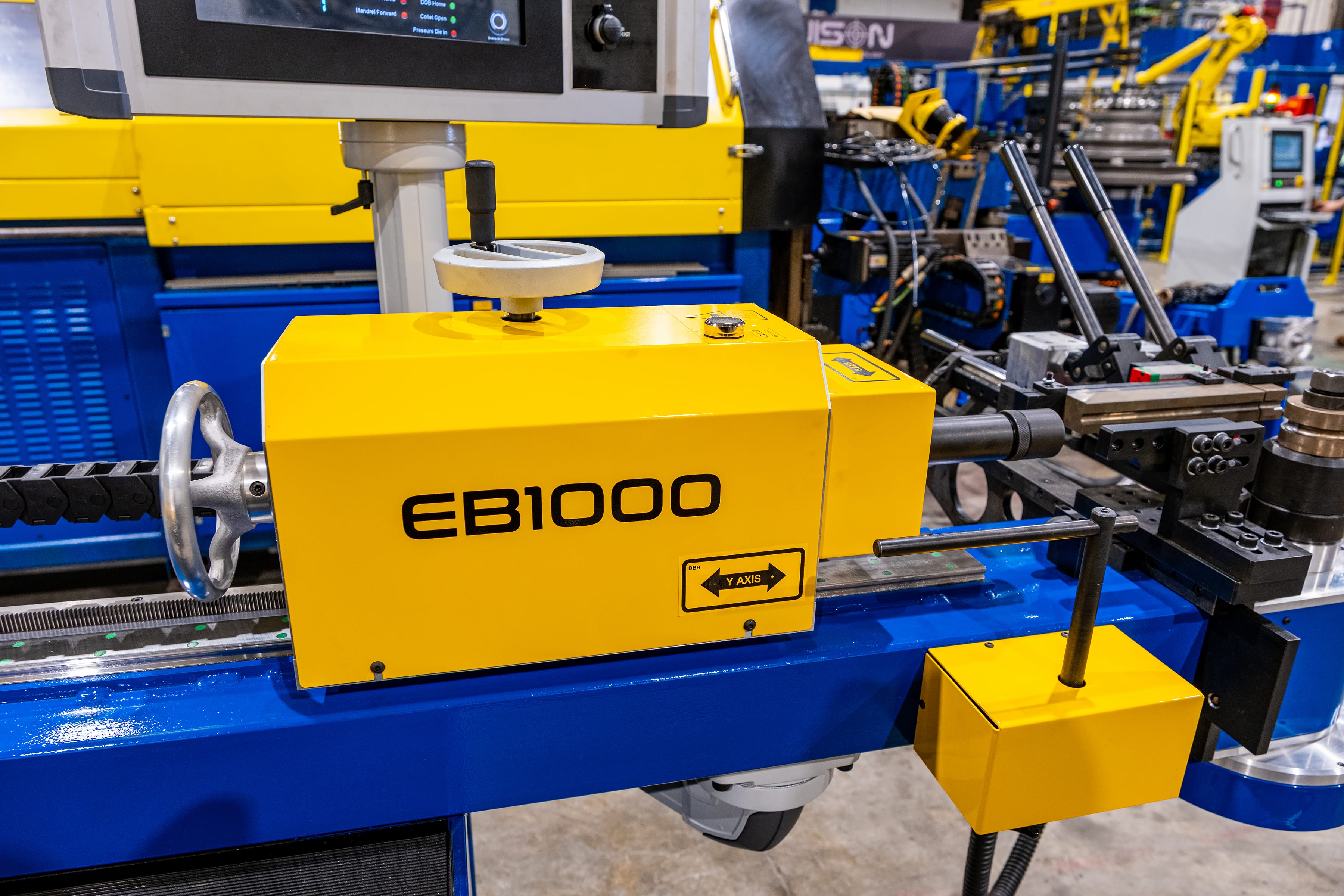

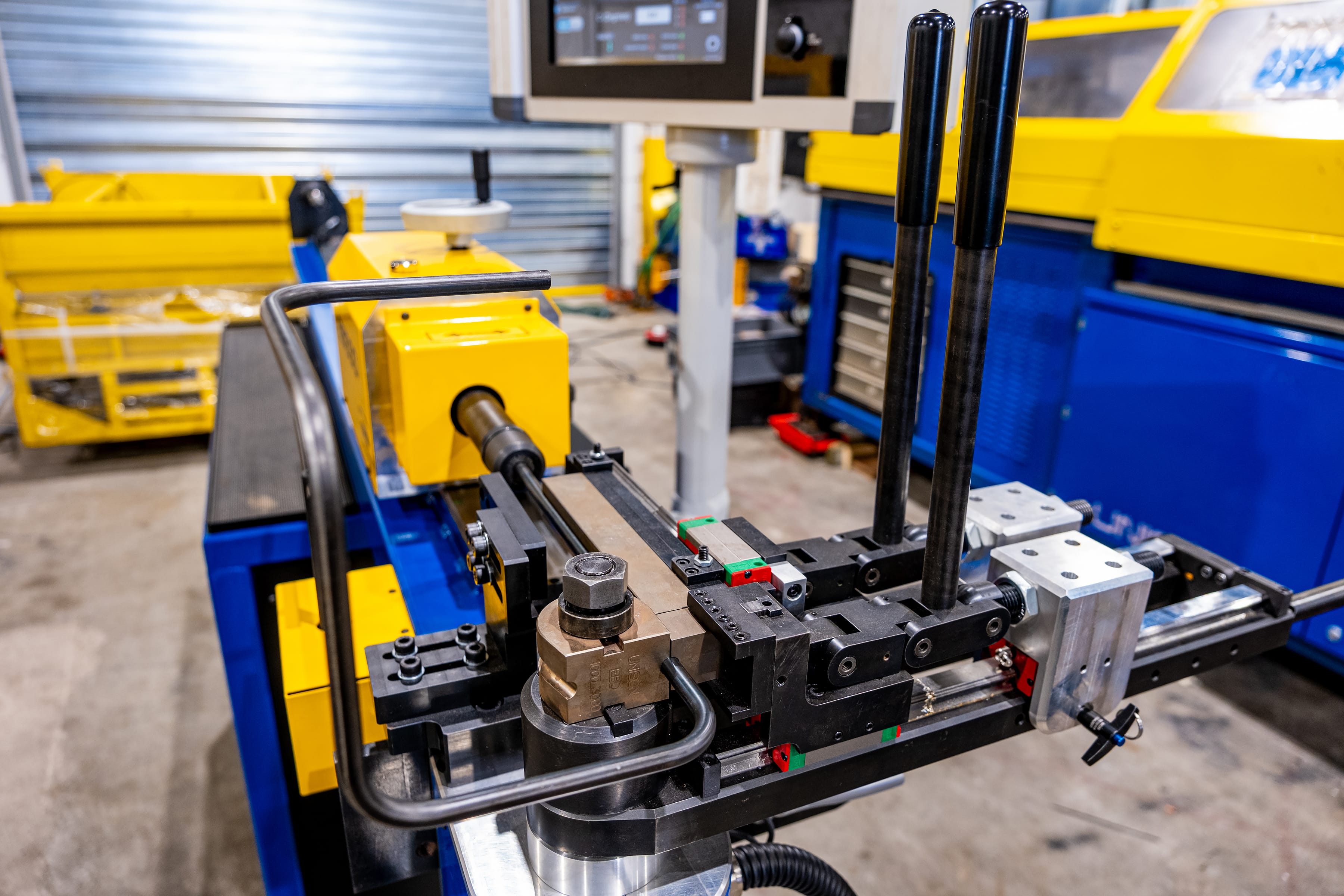

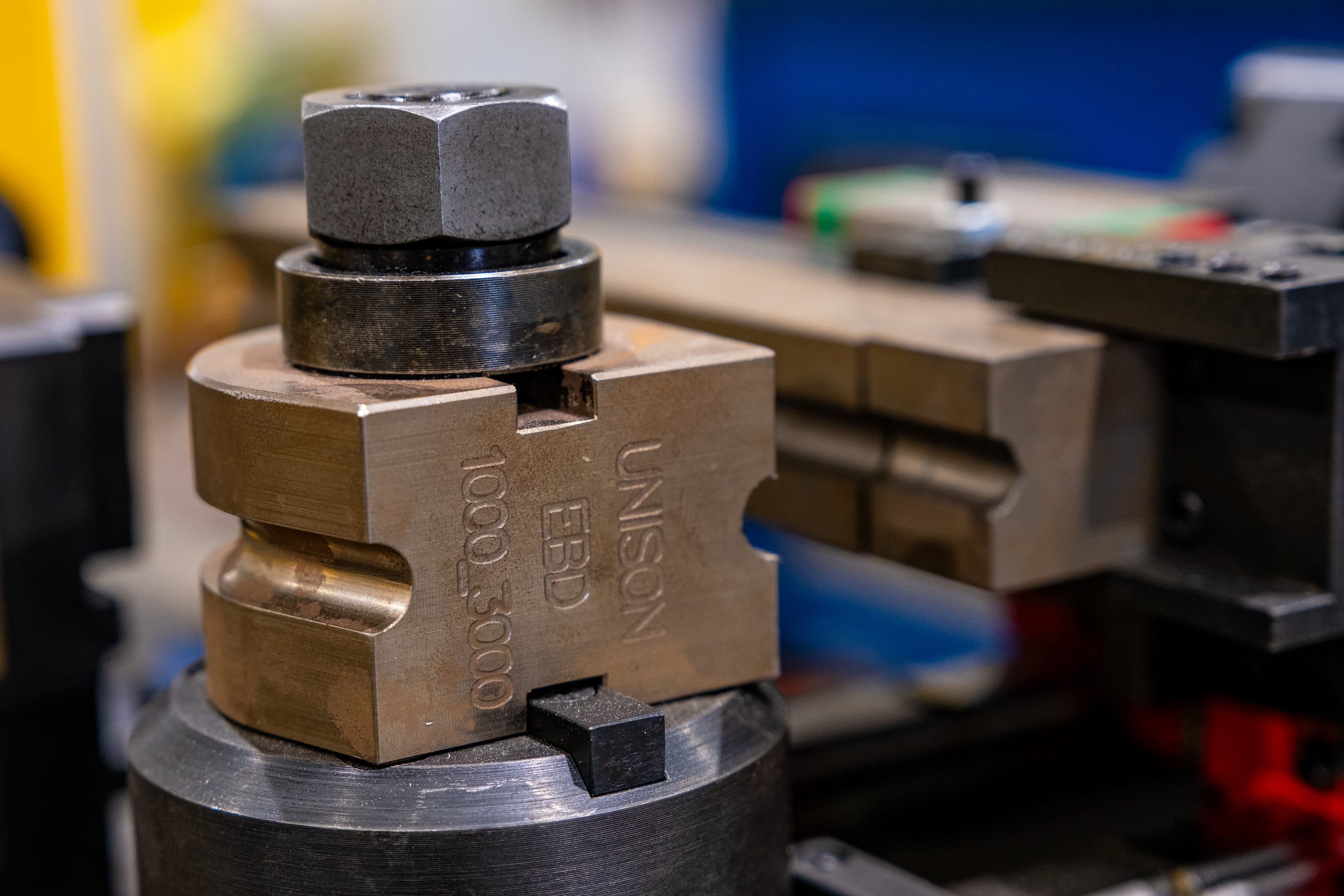

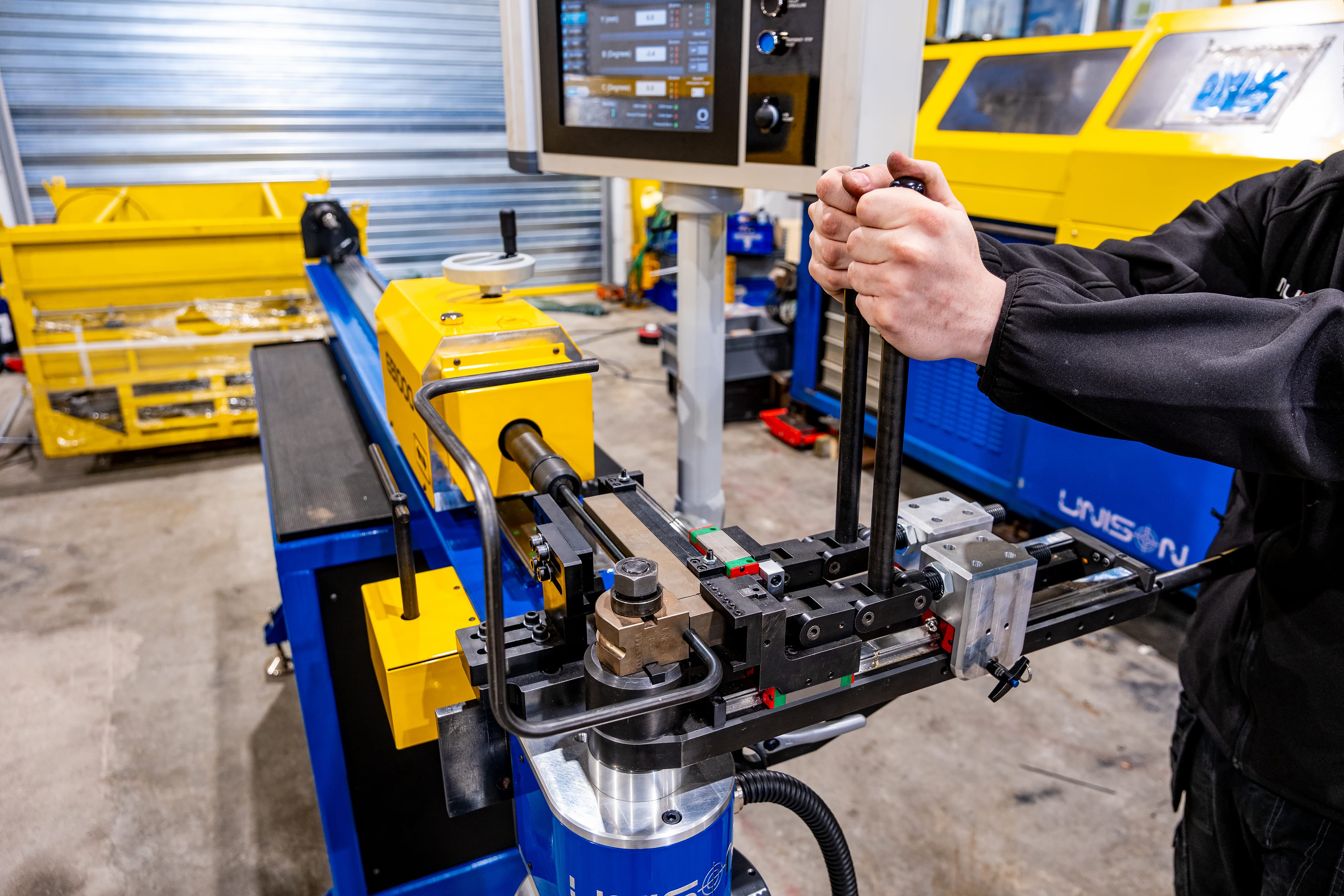

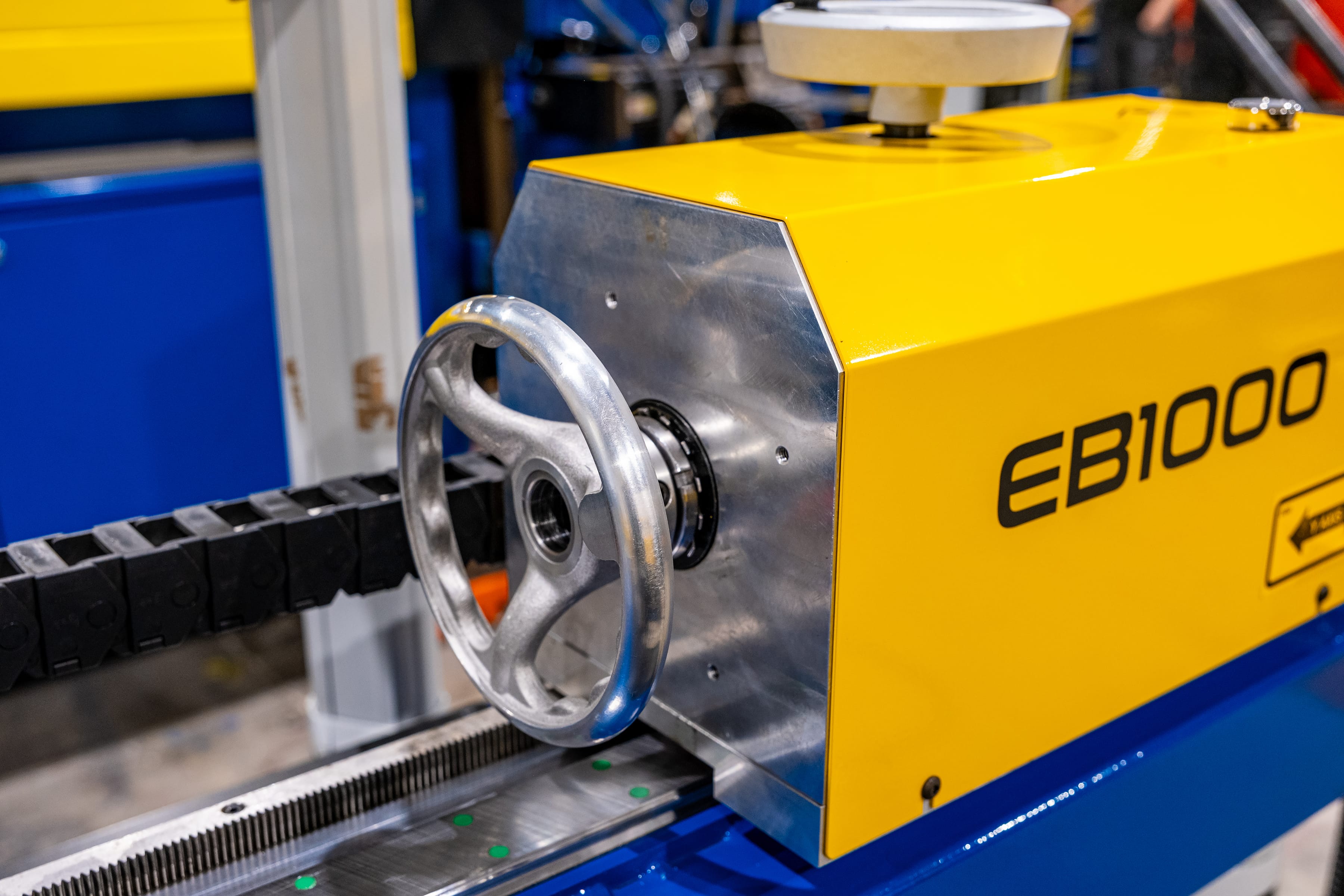

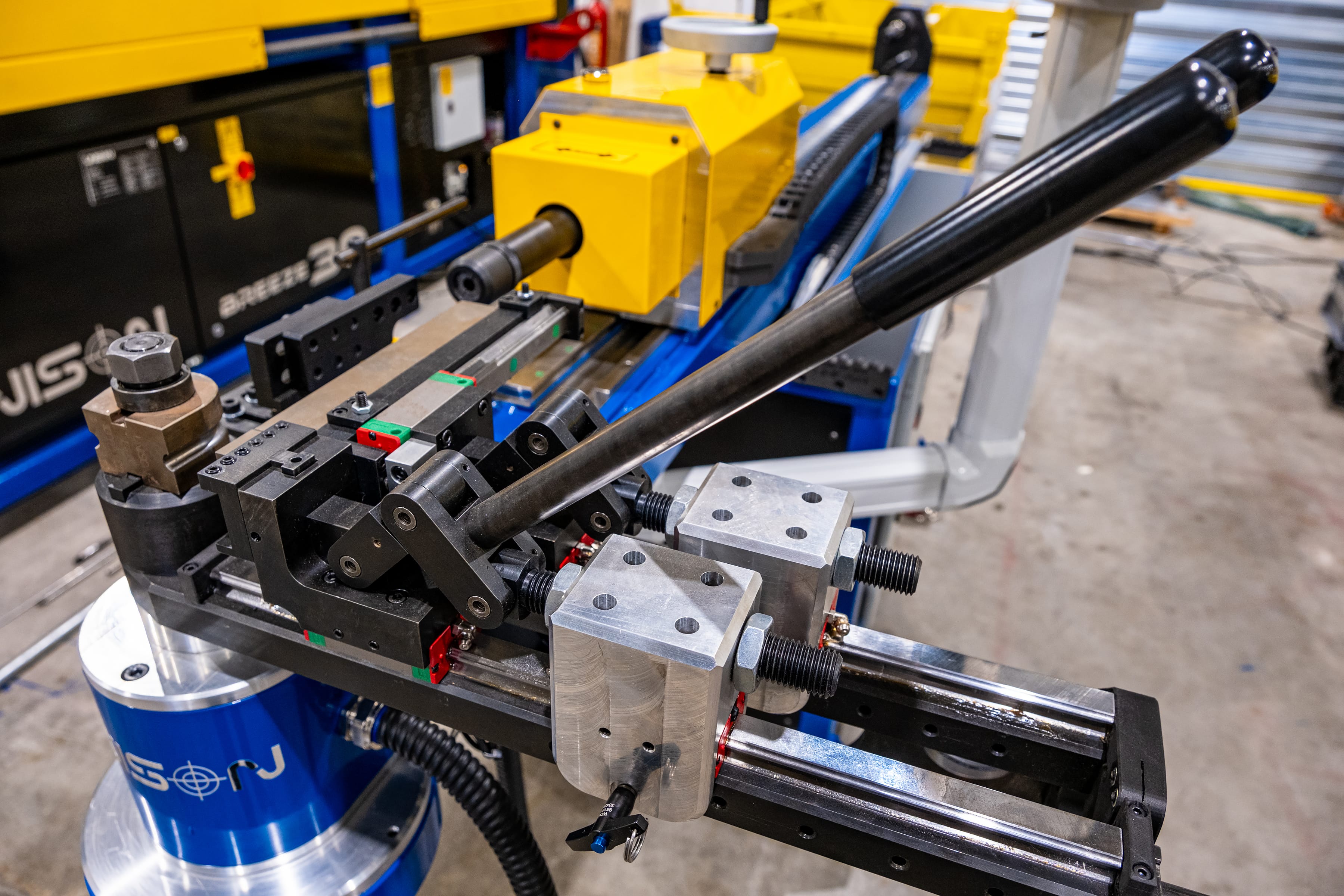

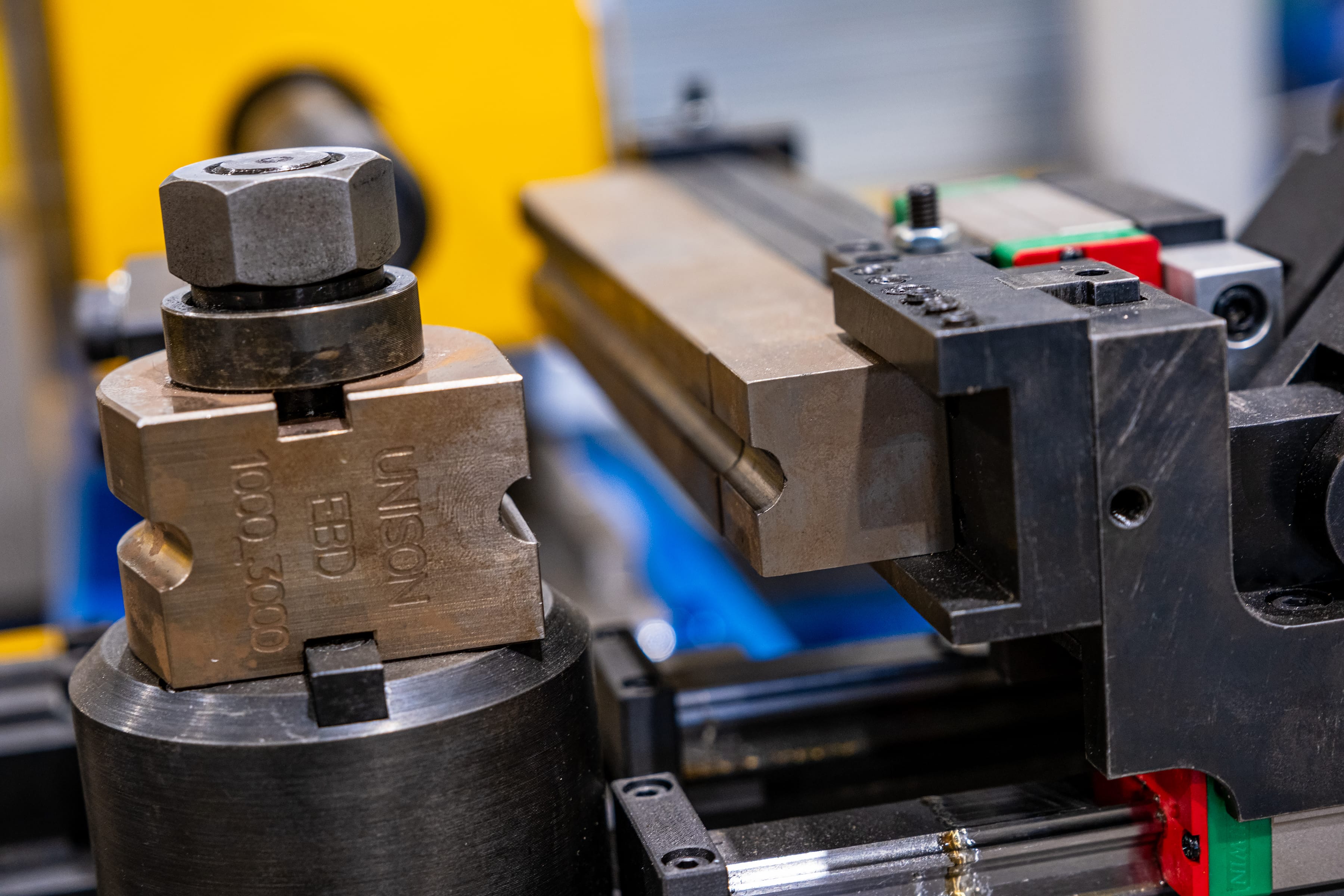

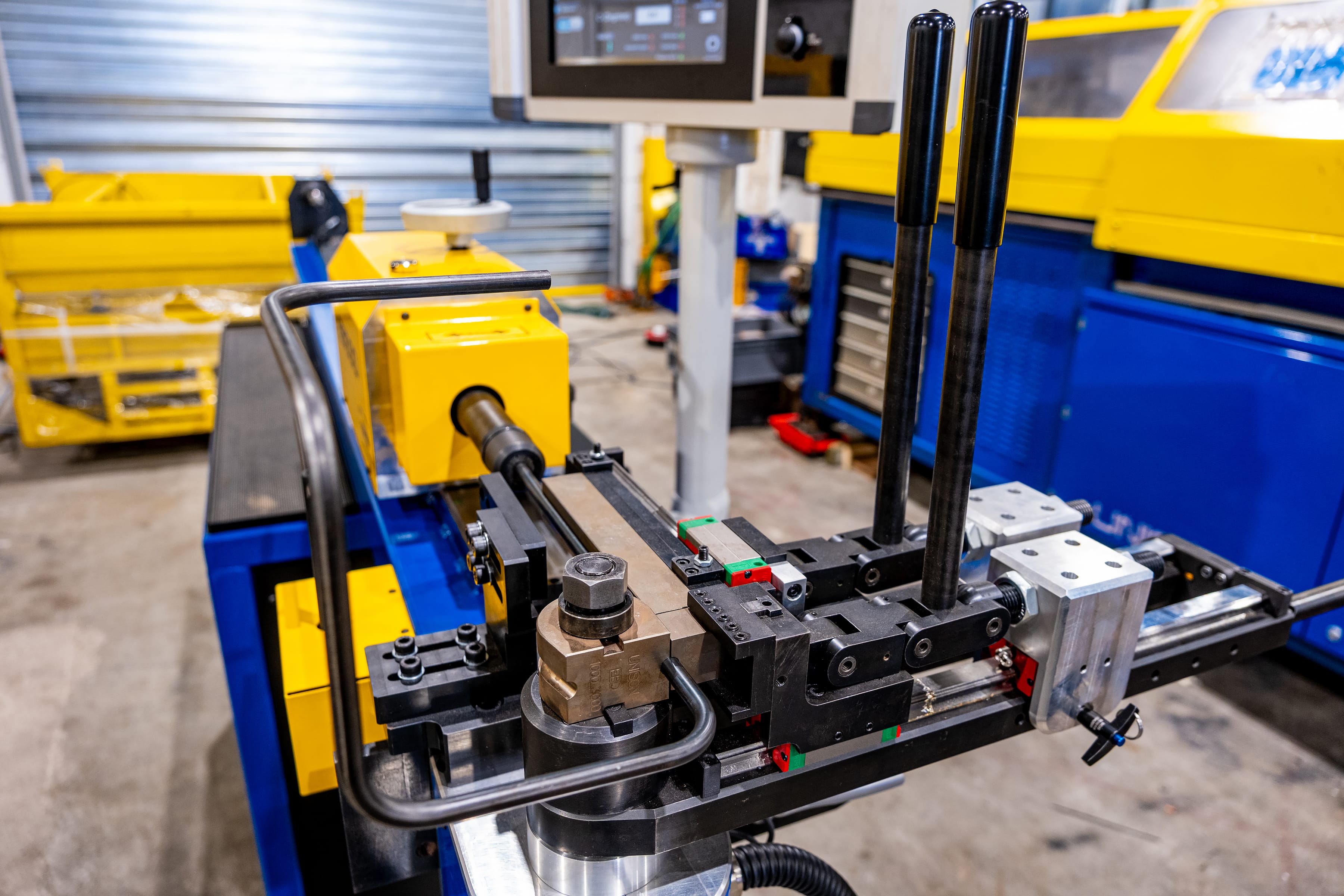

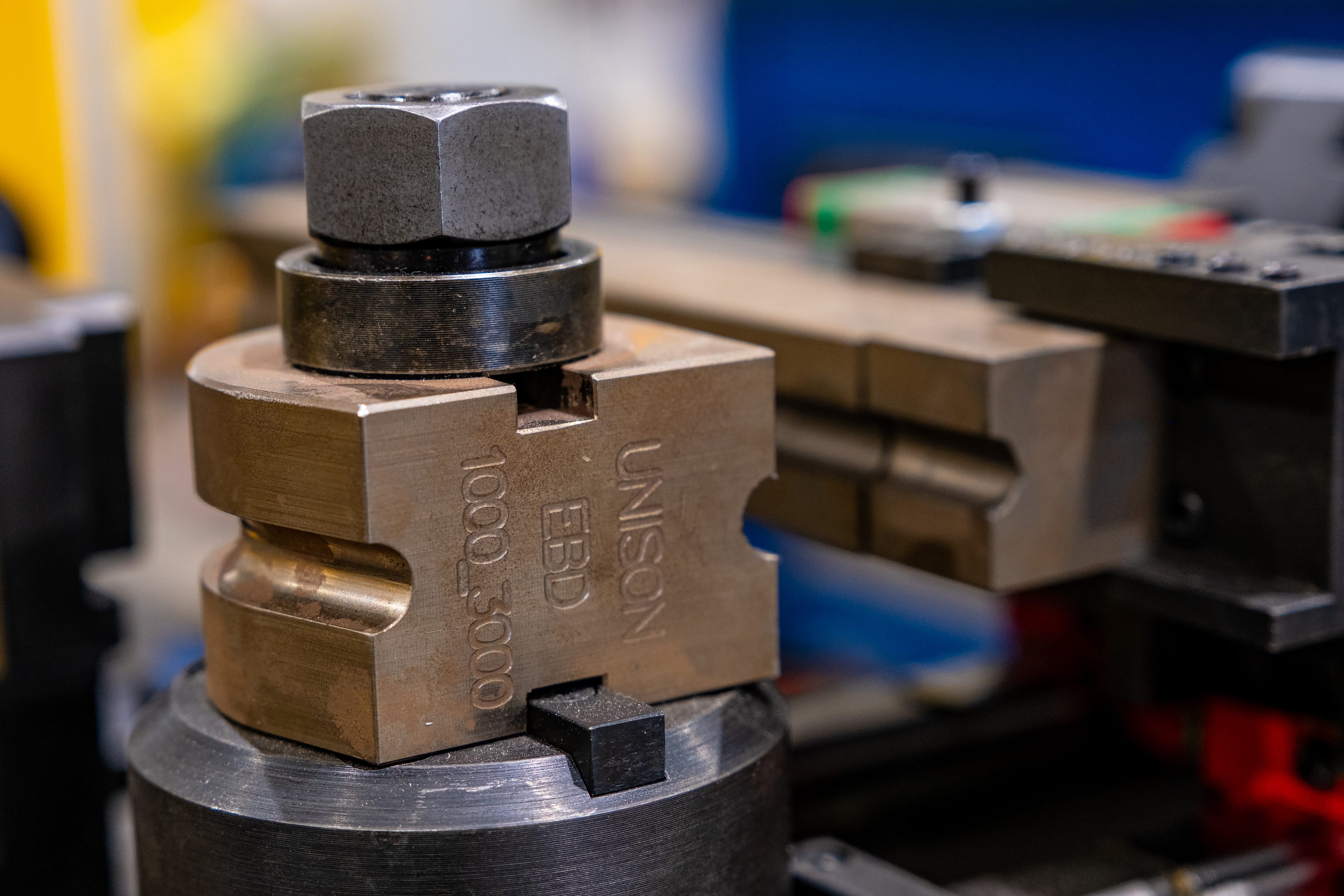

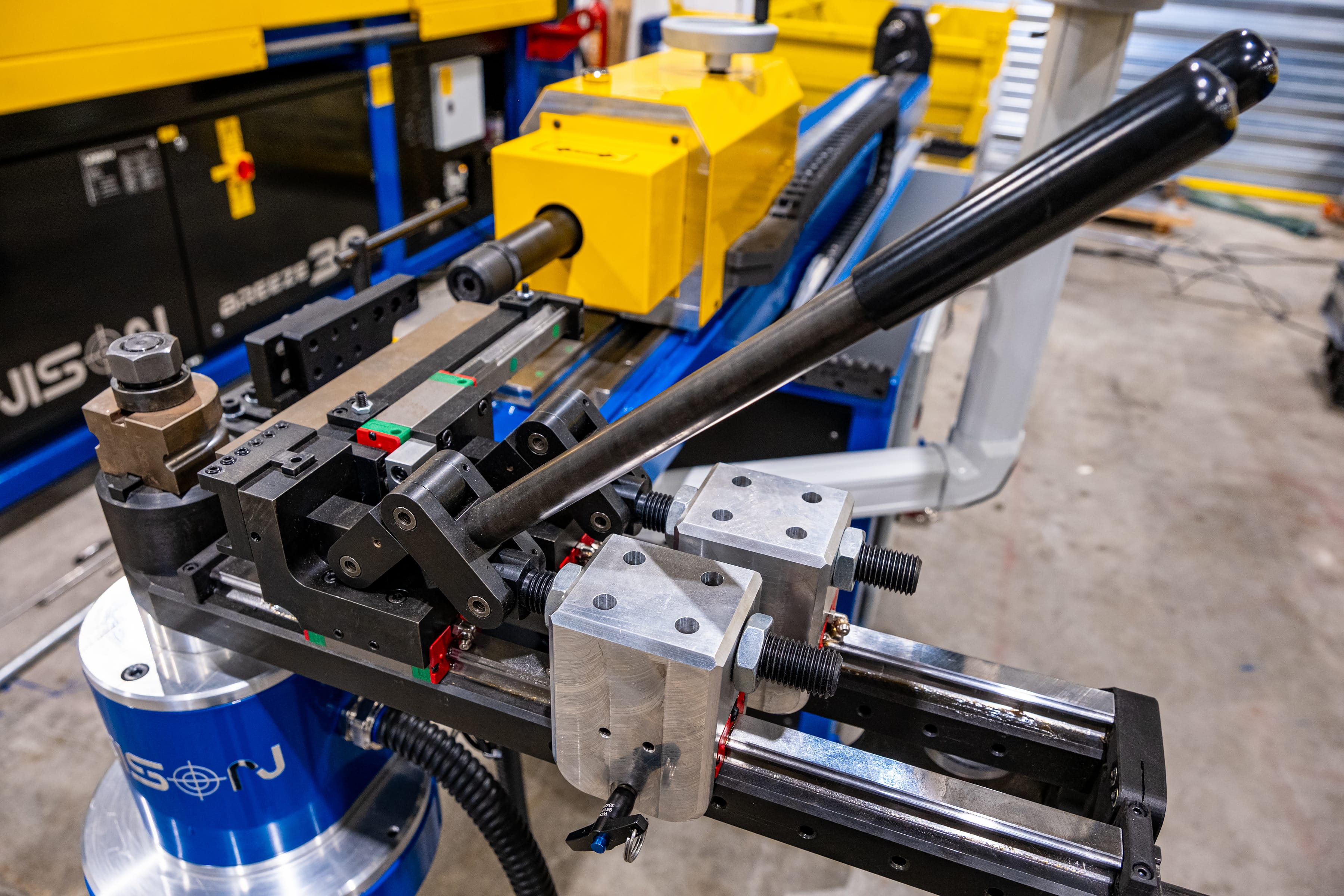

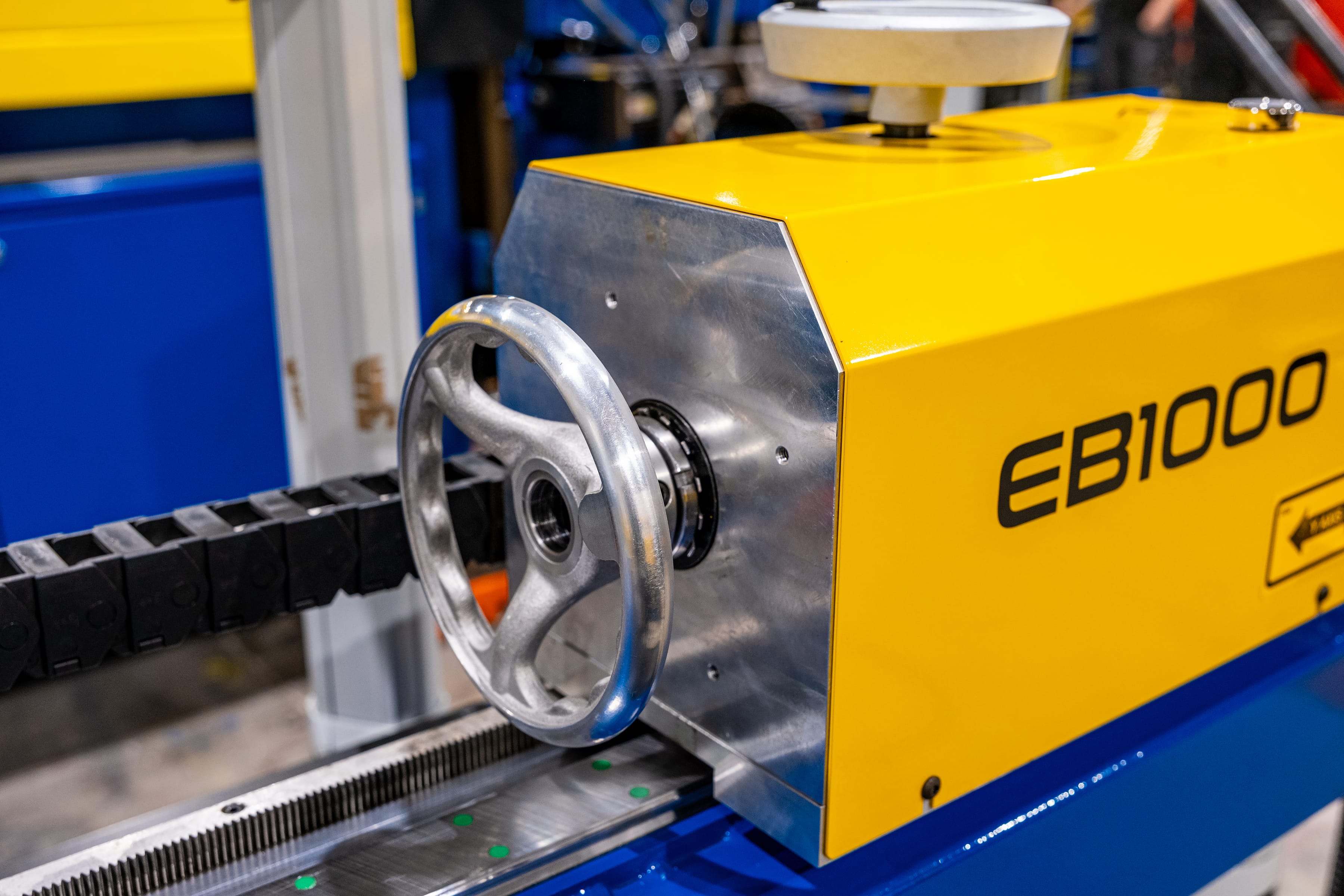

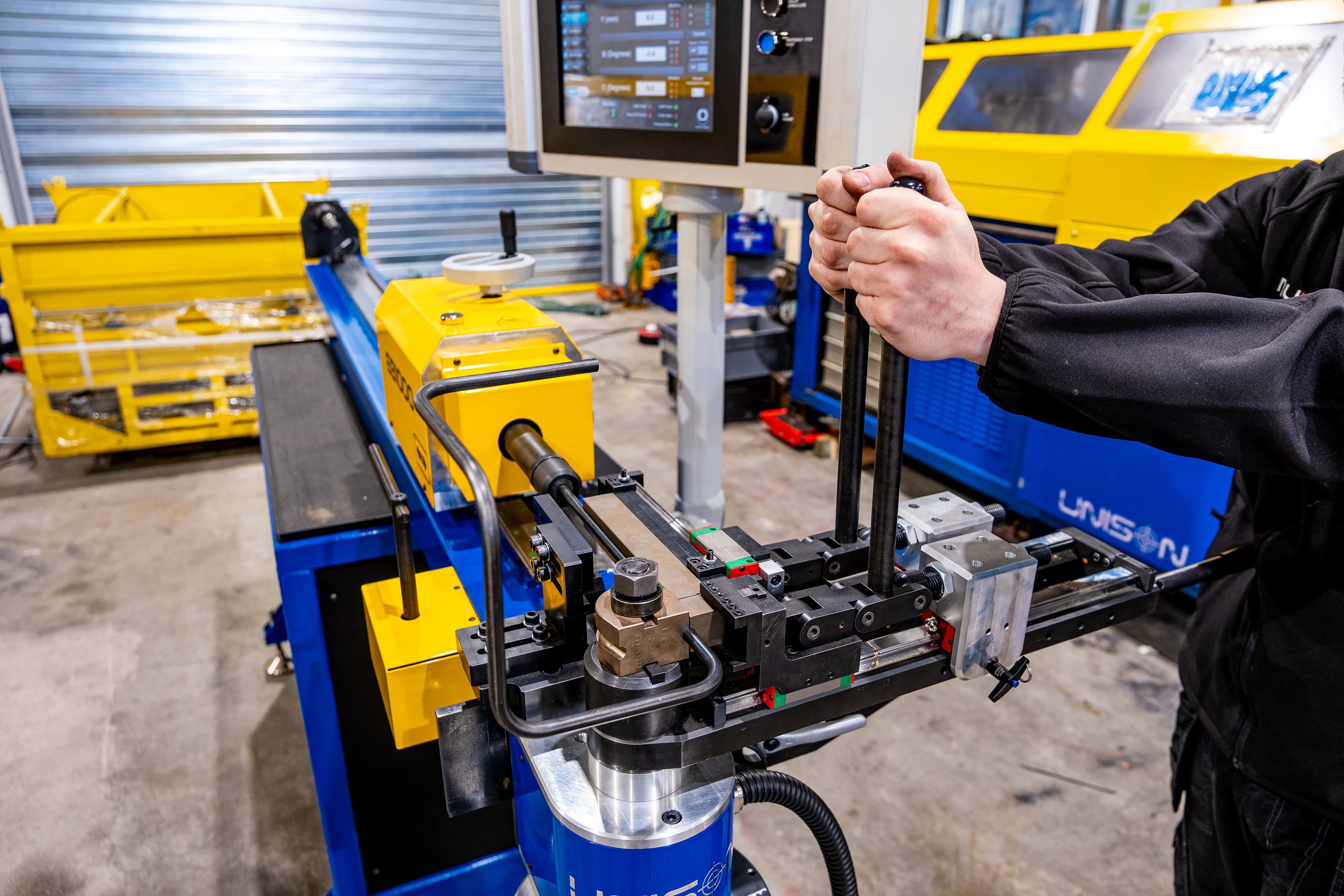

Unison EvBend machines provide CNC-controlled, manually operated 3-axis, mandrel, multi-plane bending at a fraction of the cost of fully automated bending machines. Although operated by hand (50 mm servo-assisted), axes are CNC-controlled using encoders and progressive electromagnetic brakes.

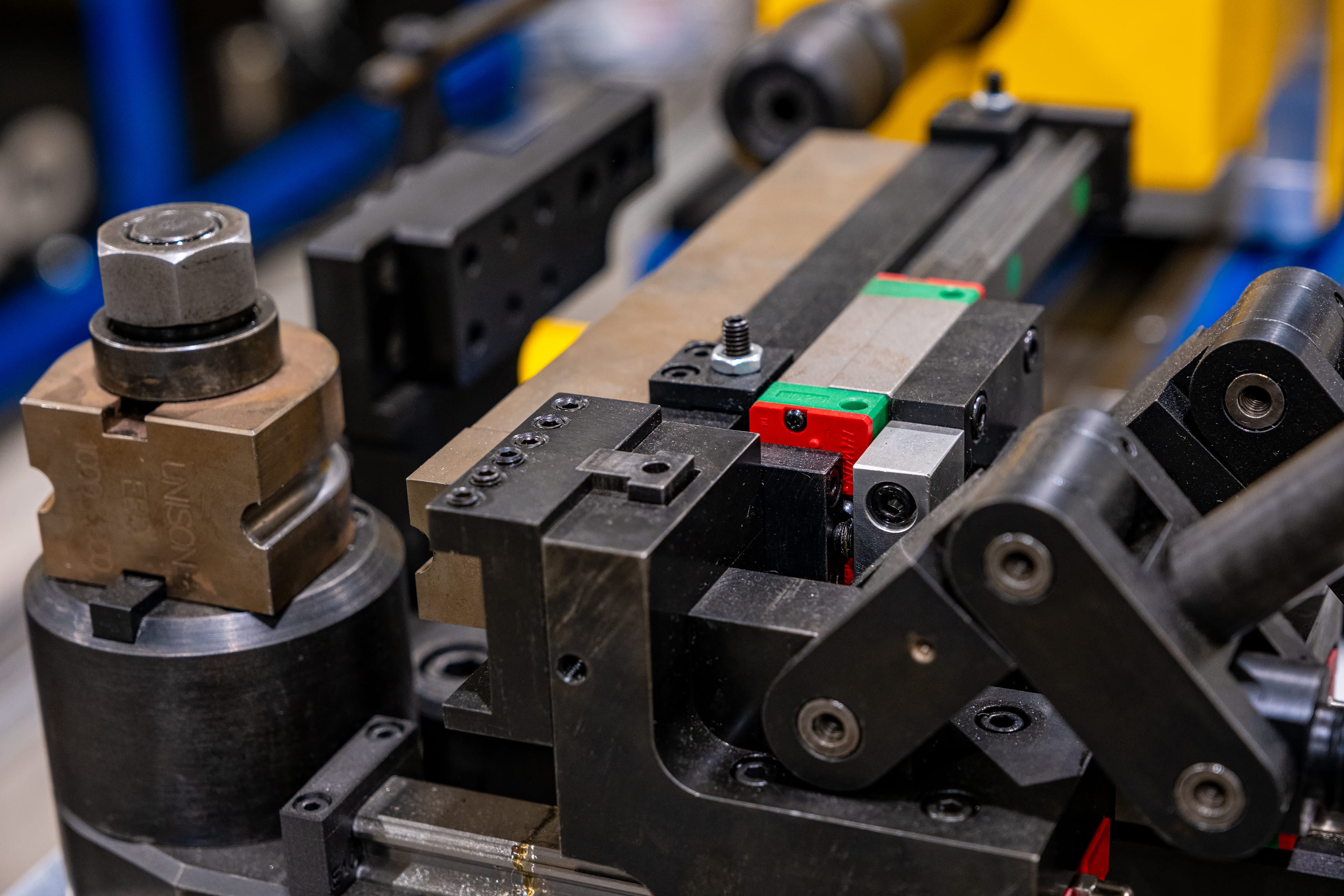

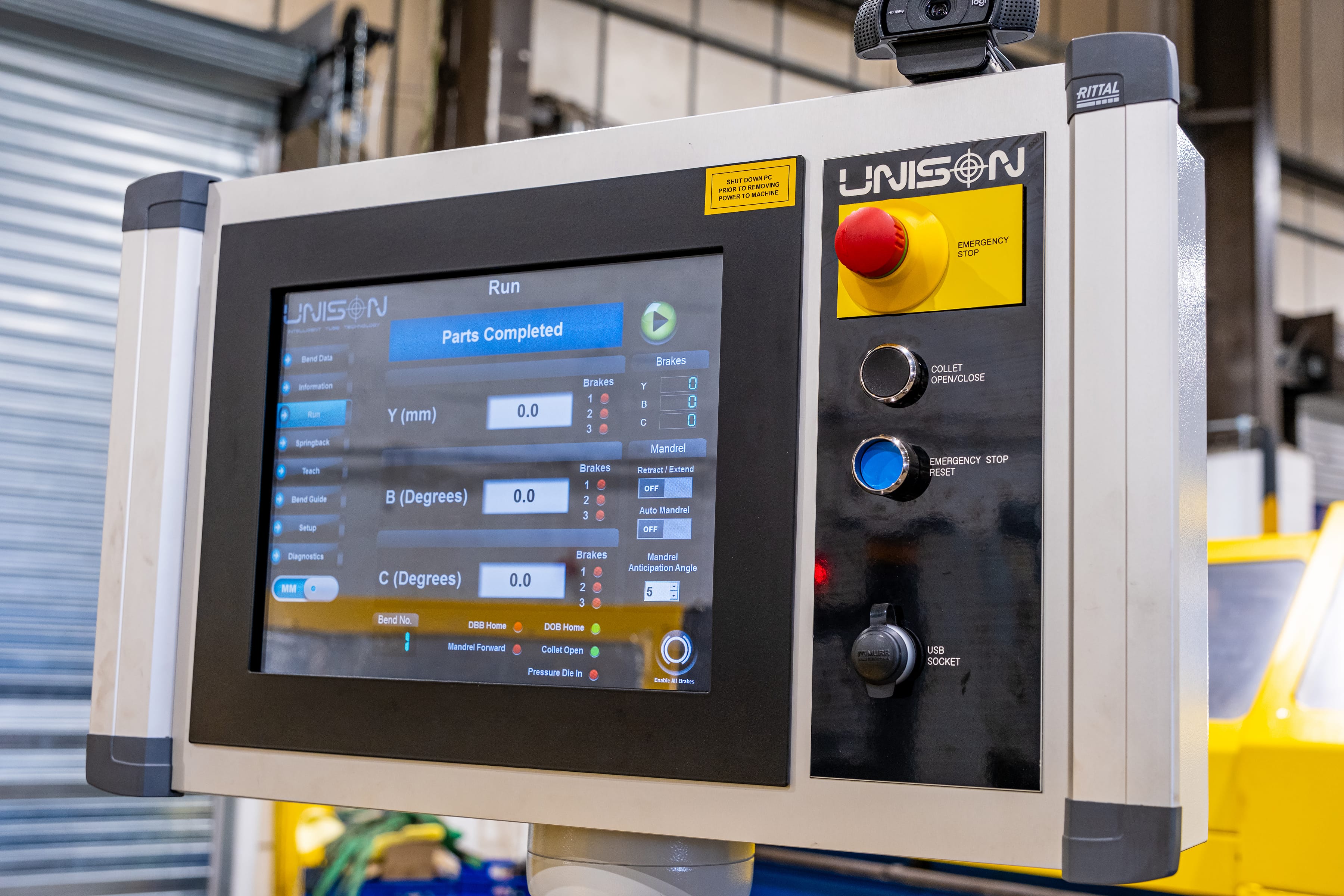

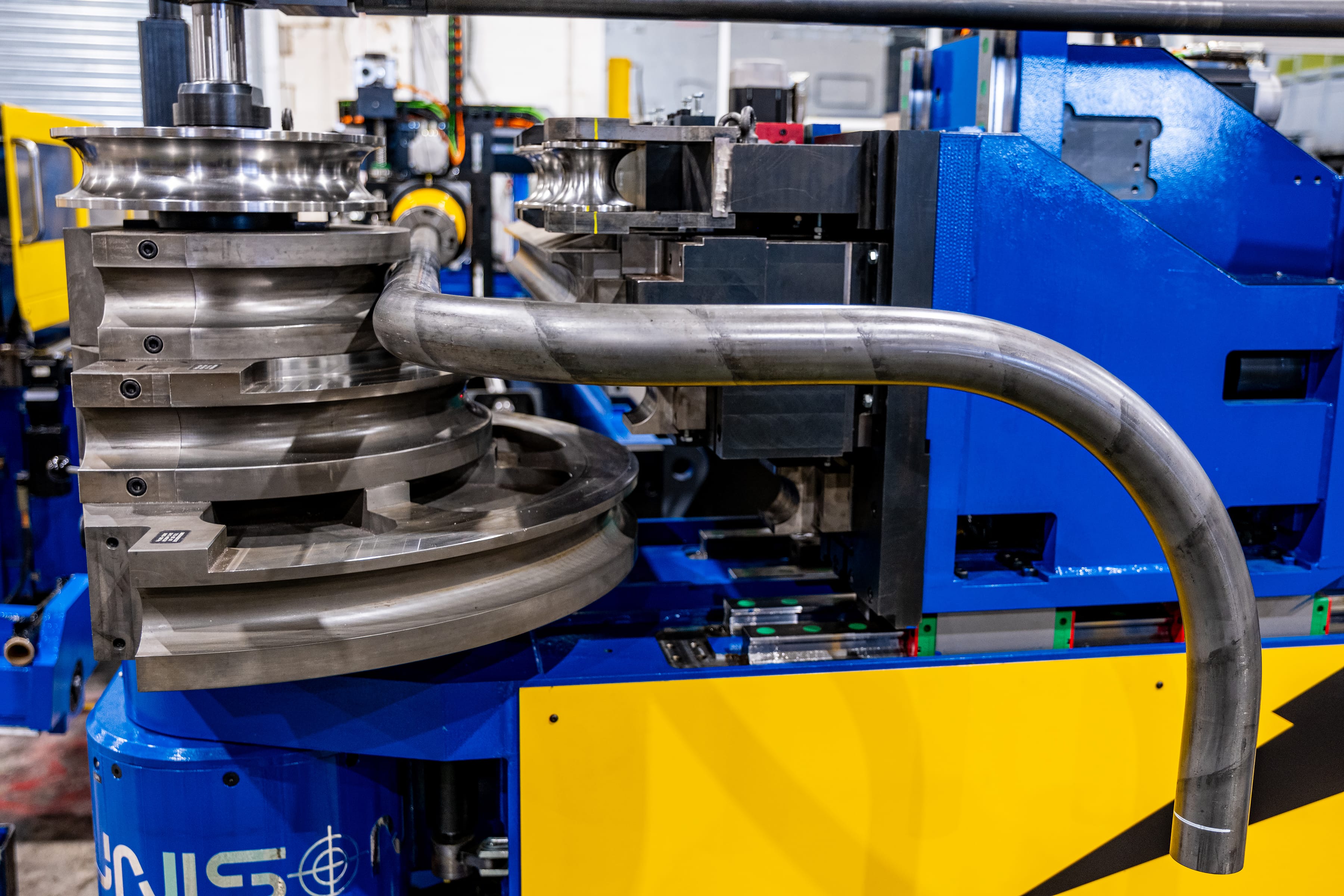

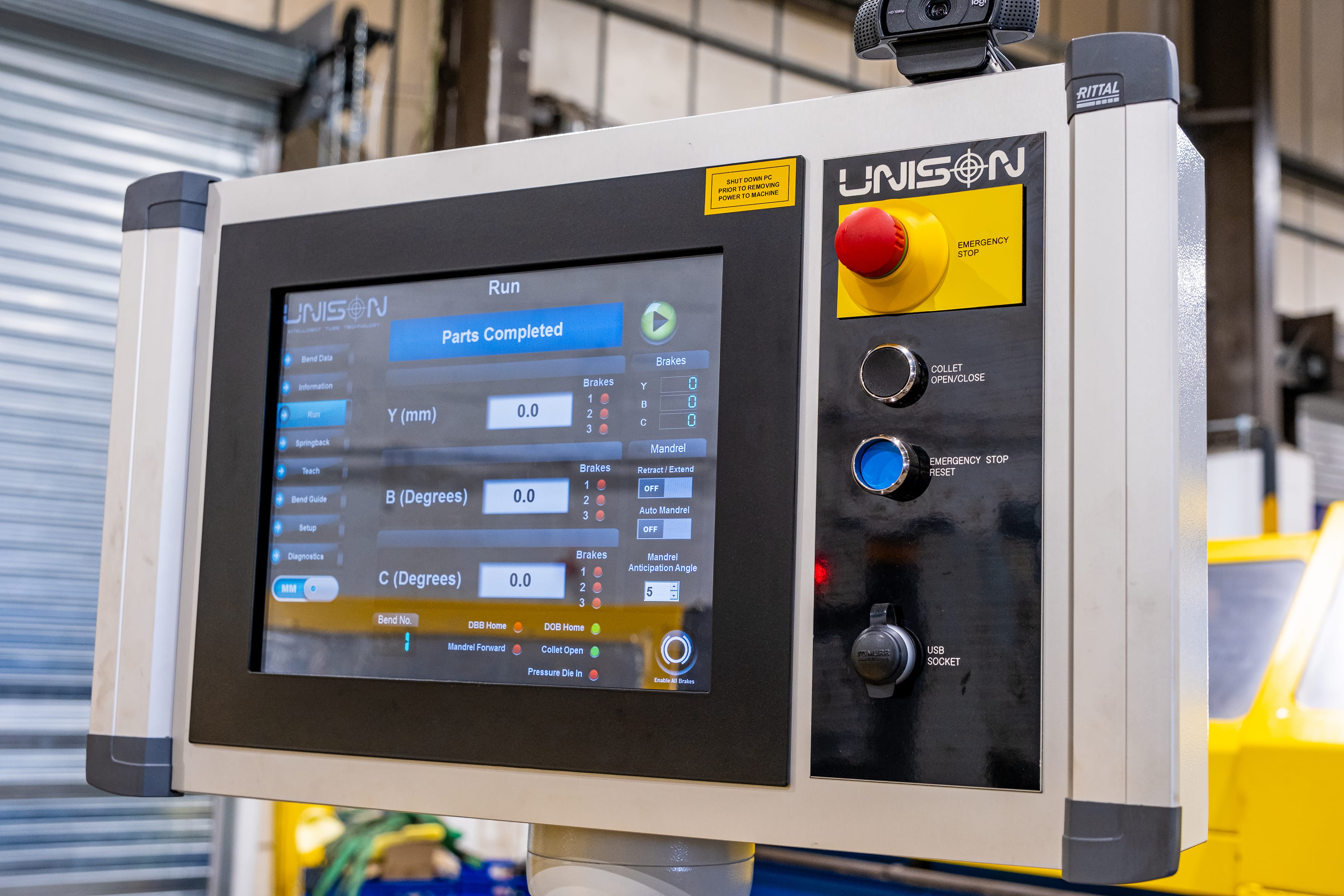

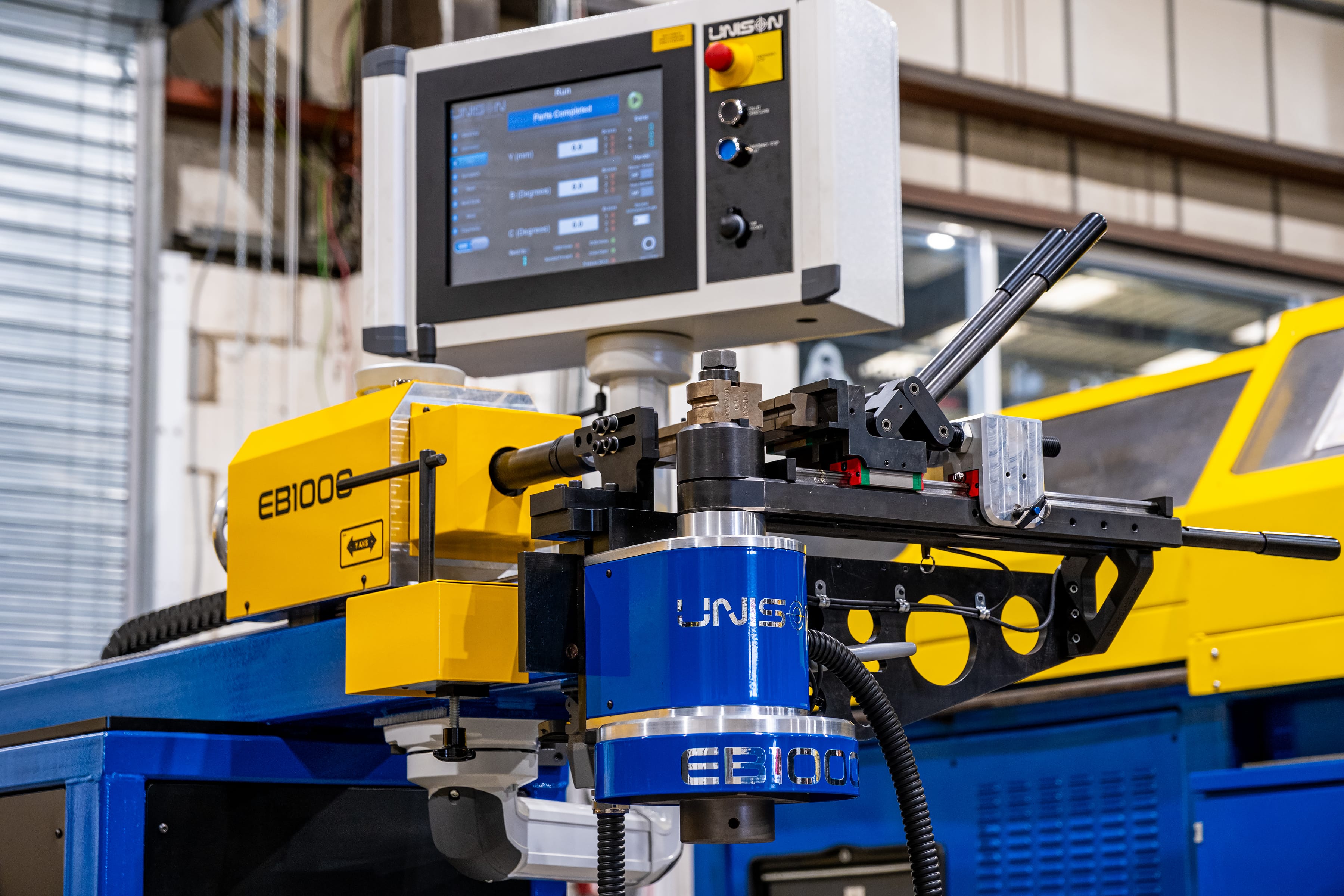

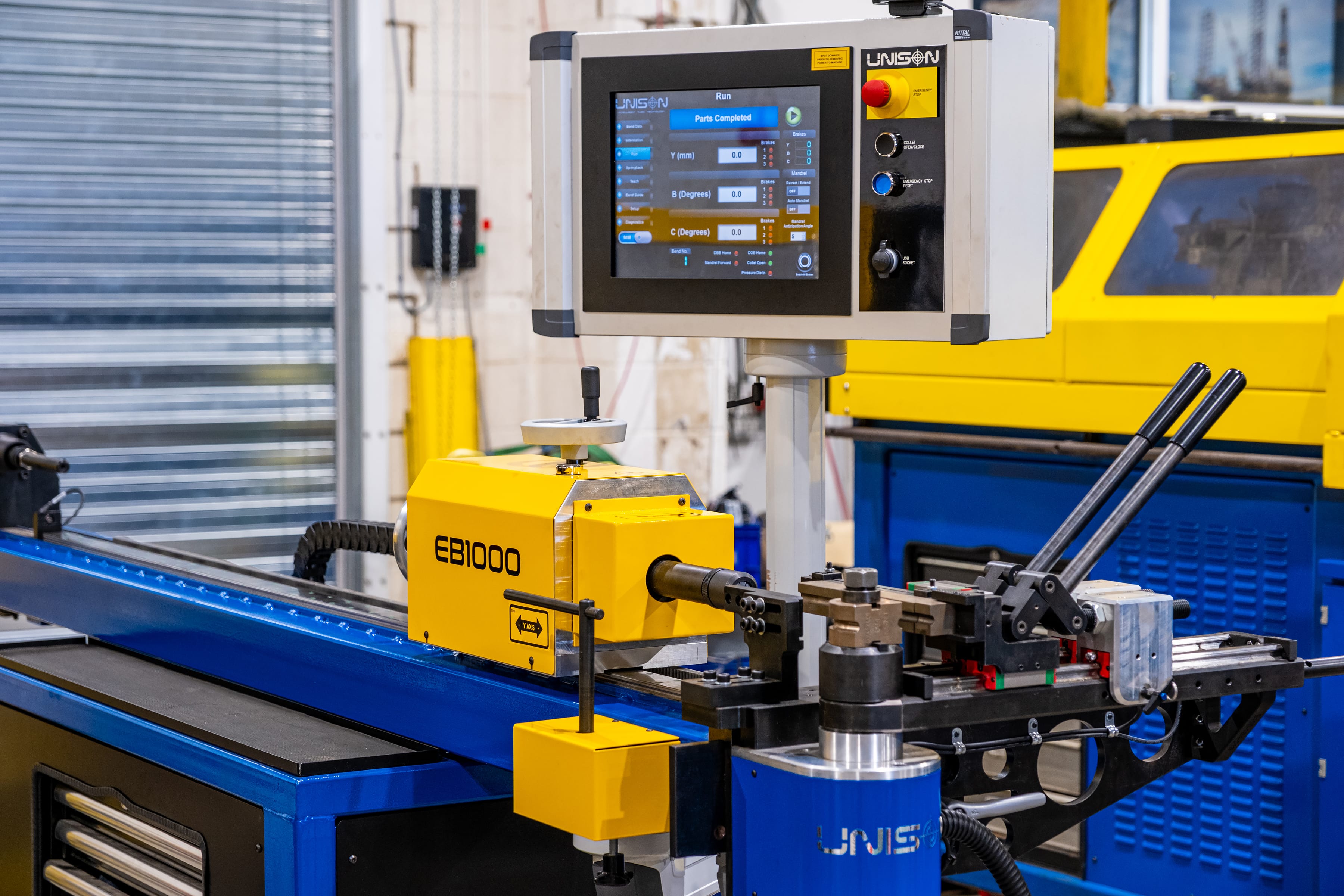

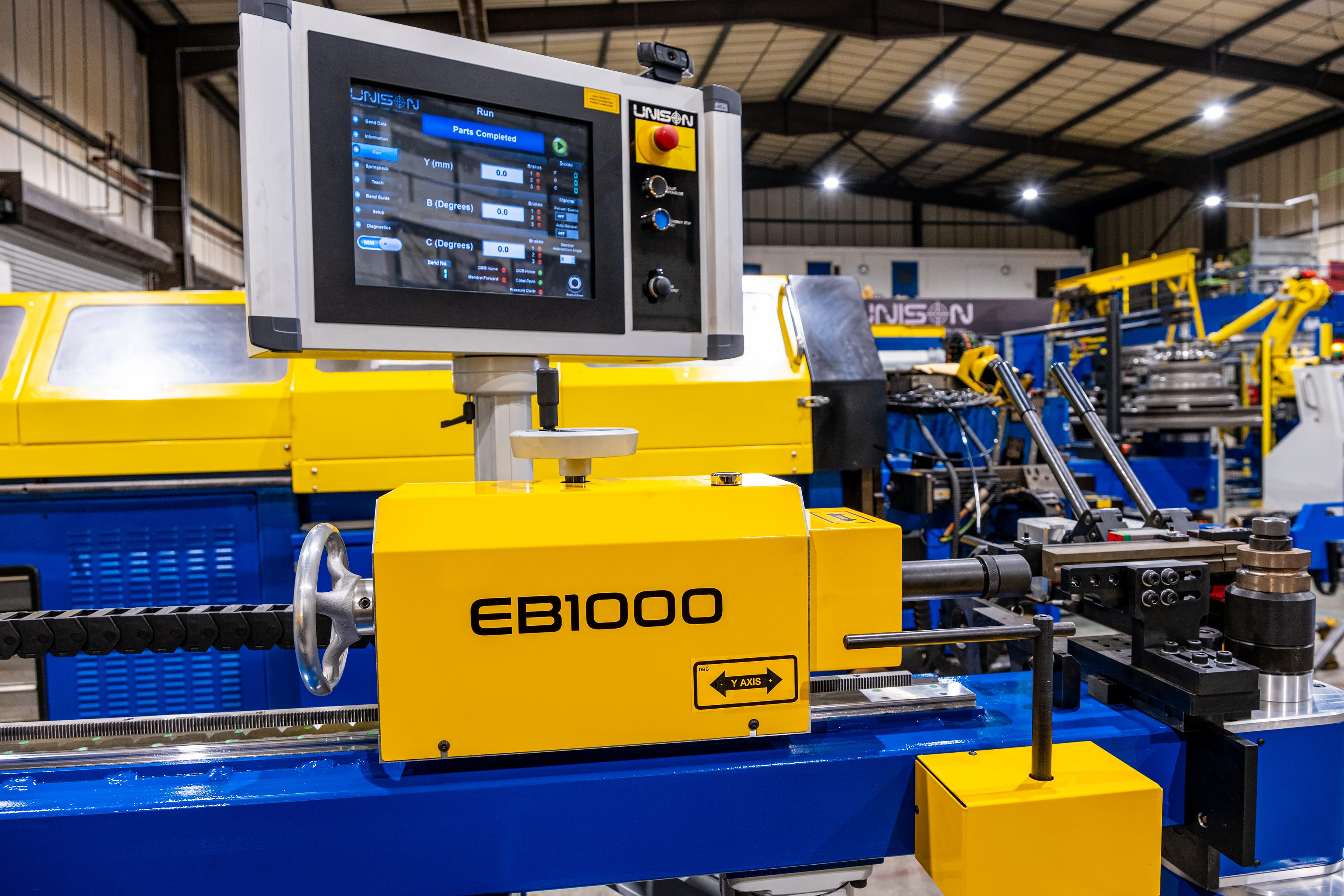

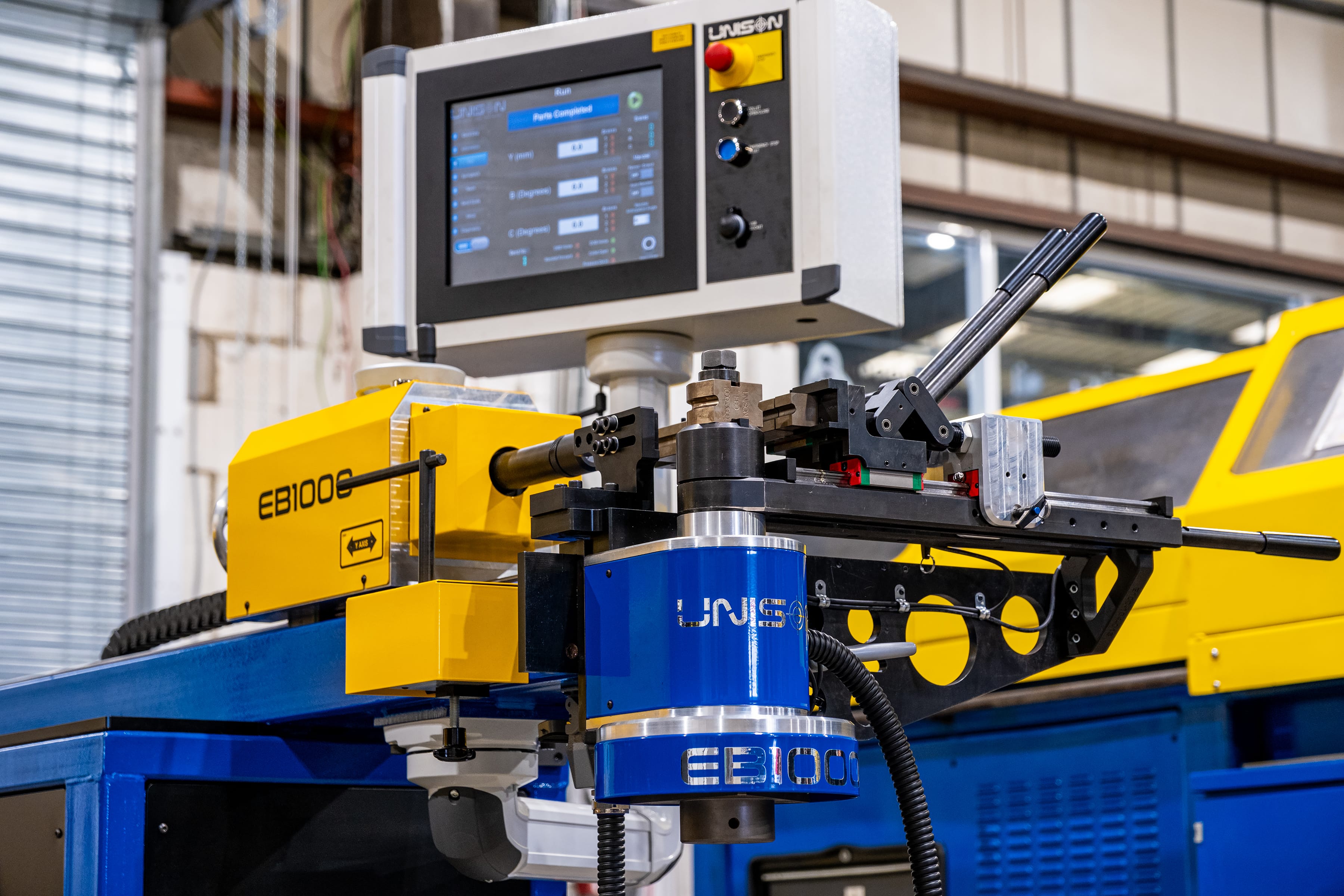

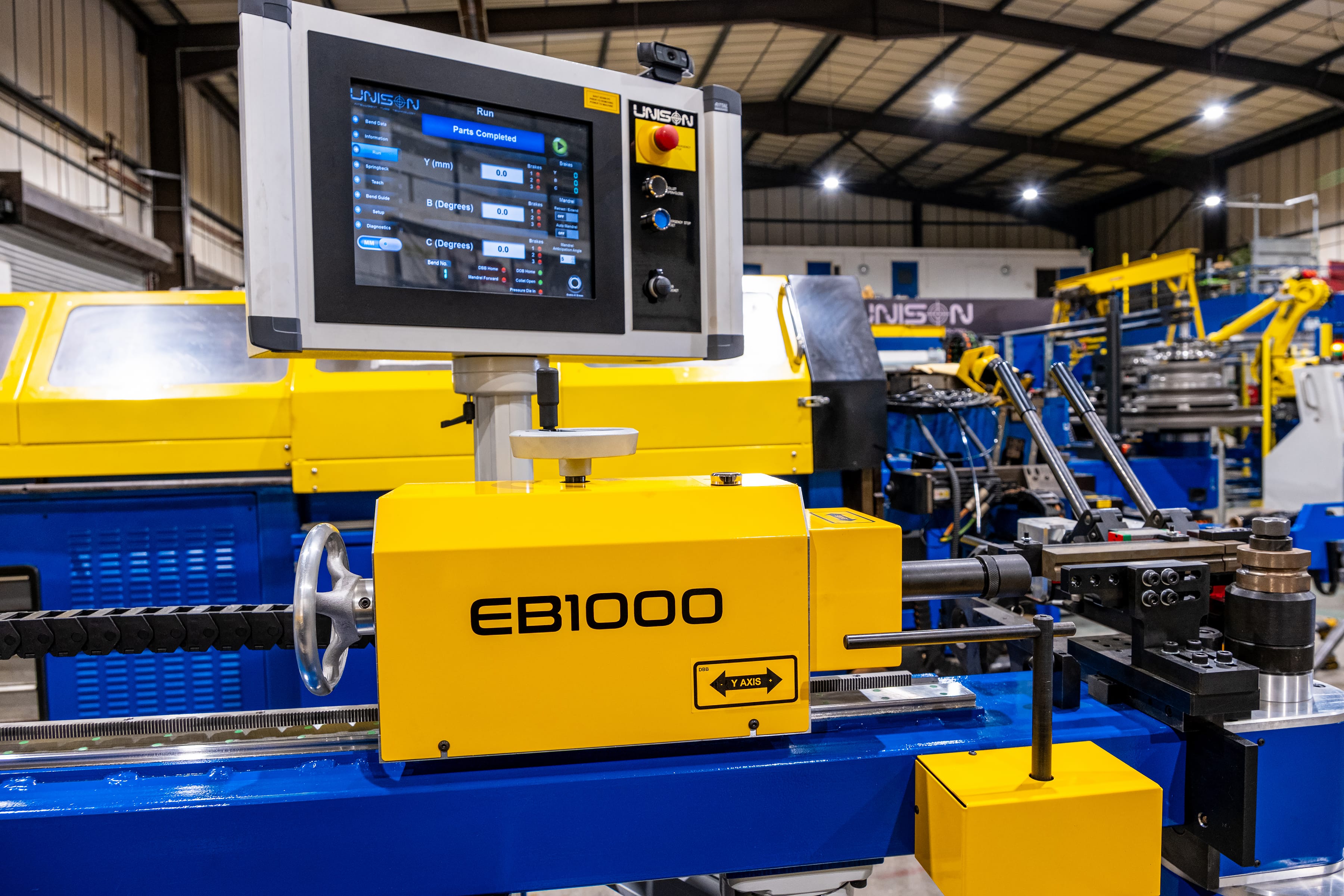

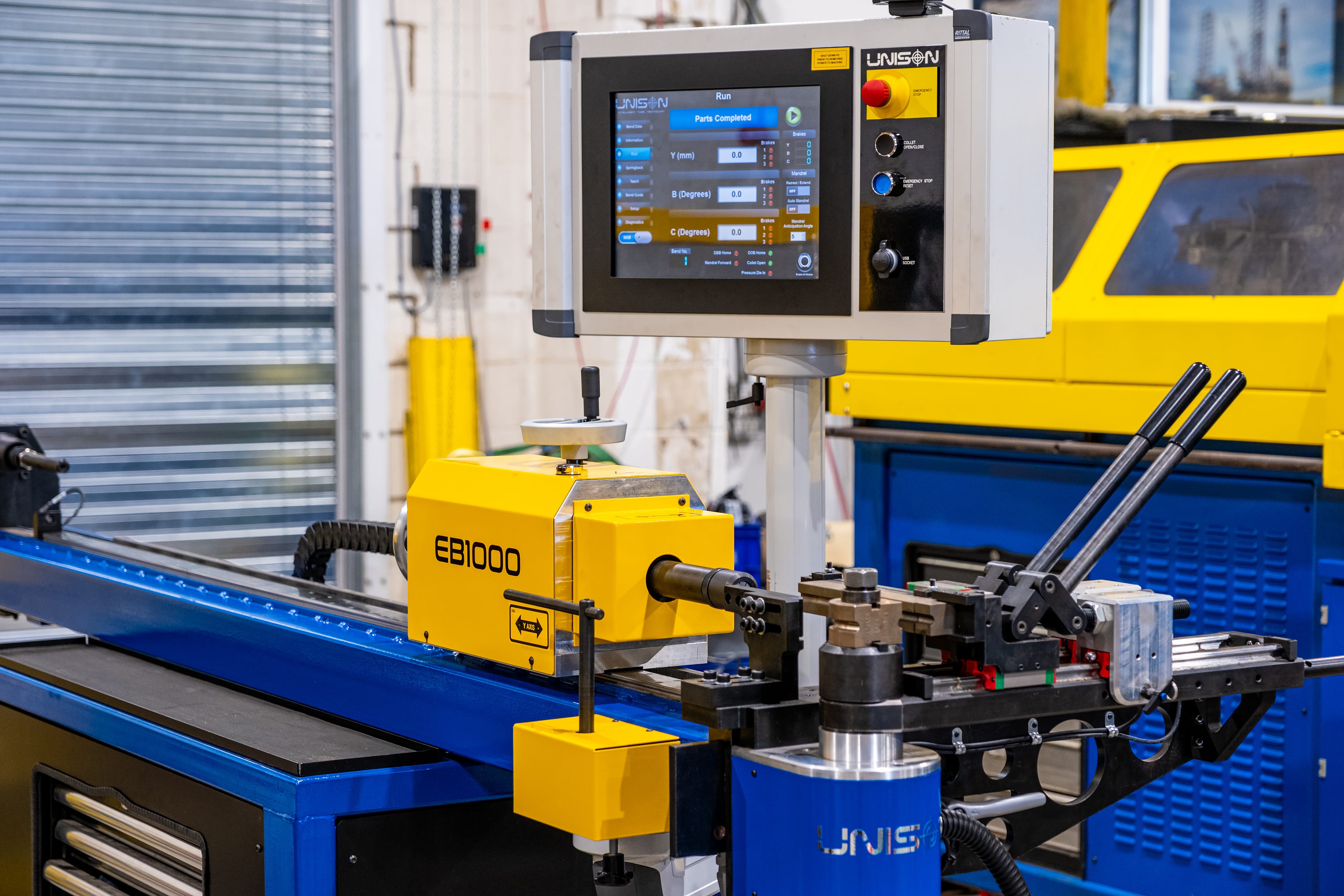

The EvBend CNC control features a PC-based 15” touchscreen and is capable of processing up to 1000 bends per component, storing infinite parts and connecting to CAD and most tube measuring systems.

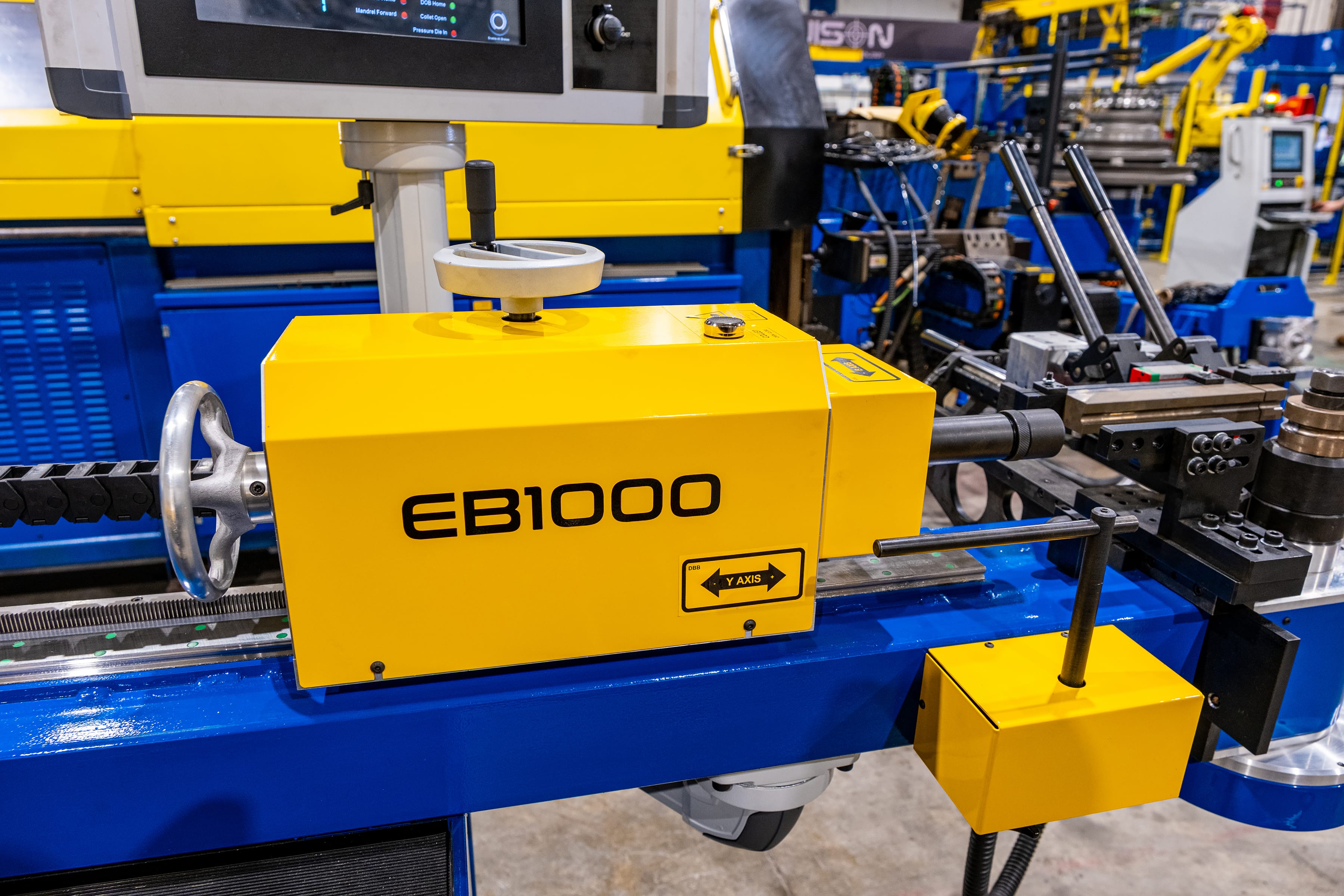

| Size | EvBend 1000 | EvBend 2000 |
|---|---|---|
| Bending Capacity | 3 mm – 16 mm (22 mm in copper) | 3 mm – 50 mm |
| Bend Radius (CLR) | Up to 135 mm | Up to 200 mm |
| Bend Programme Lines | Unlimited | Unlimited |
| Bend Settings | 100 | 100 |
| Max Tube Length Over Mandrel | Customer specific | Customer specific |
| Max Bend Arm Movement | 190° | 190° |
| Machine Accuracy | +/- 0.1 mm & +/- 0.1° | +/- 0.1 mm & +/- 0.1° |
| Screen | LCD 15” touchscreen | LCD 15” touchscreen |
| Length | 3,658 mm | 3,928 mm |
| Height at Carriage | 1,000 mm | 1,000 mm |
| Width at Bend Head | 840 mm | 1,696 mm |
| Weight | 365 kg | 750 kg |
| Electrical | Single Phase 220 – 240V | 3 Phase 380 – 415V |
Since the Unison EvBend 2000 was installed at our facility in Portland, Oregon, we have completely removed our reliance on outsourced pipe bending and have been able to significantly reduce our stockholding.
