Possibly the most advanced hand-held tube measurement system on the market, Opt2Sim Scan combines rapid scanning of tube geometry with easy extraction of tube data.
Simply use the portable scanner to measure the tube or component you wish to replicate or measure. Extract its bending data in Opt2Sim Scan. Then easily compare measured tube dimensions to master file data and send corrections directly to the bending machine.
Offering considerable scan points without compromising speed, the constant reference geometry ensures supremely accurate results – without the need for a skilled operator to always place the part in the same position or enter some of the information pre-scan.
With Opt2Sim Scan sitting within our own suite of software, ‘compare to master’ and feedback to the bending machine is quick and seamless, without pausing the bending process.
As the scanner is fully autonomous, it is easily combined with a cobot or robot to make it part of a manufacturing cell for 100% inspection.

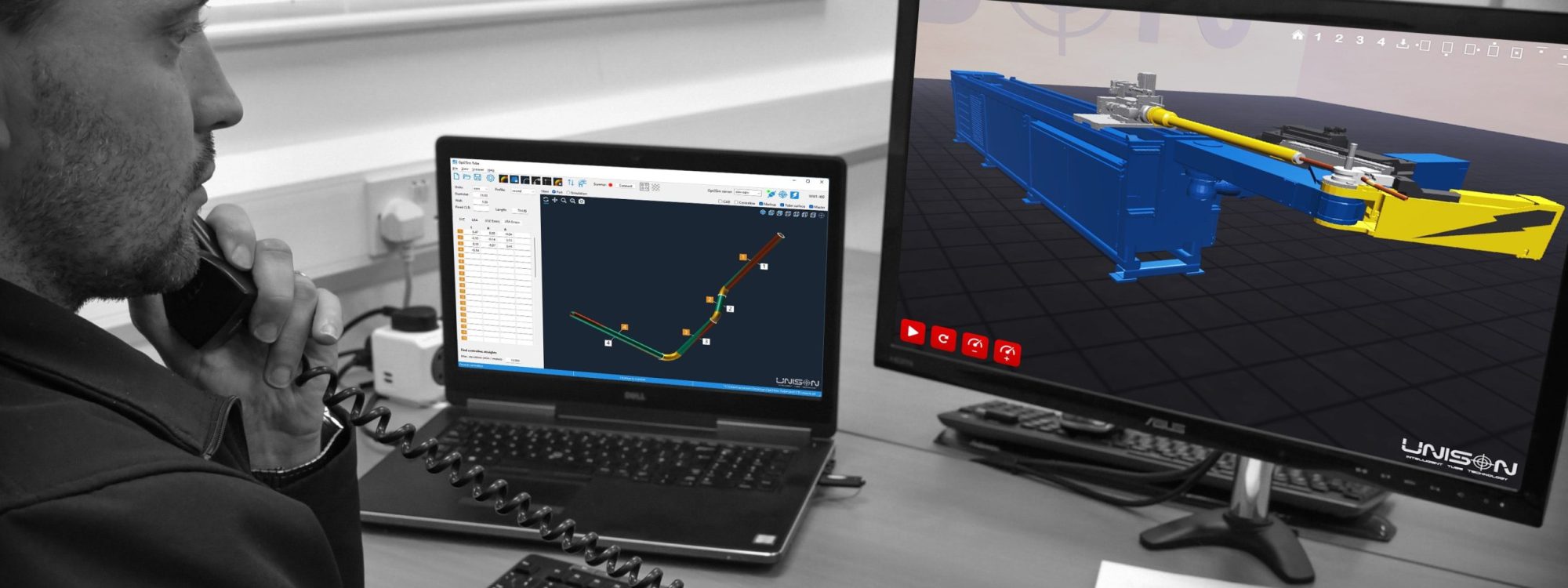

Add our simulation package to replicate the entire bending process on a CAD-based model of your Unison Breeze or Unison Synergy machine – for a precise, virtual insight into the tube bending process before a single physical part is bent.
